| 品牌 | 汇通 |
|---|---|
| 型号 | HT-PBT11B |

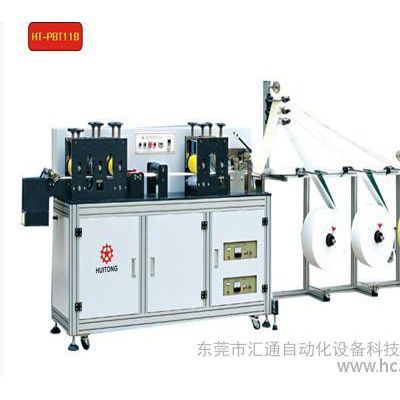

超声波口罩本体机
Ultrasonic blank mask machine
机台简介：Introduction
本机采用超声波技术完全自动化控制。主要是为制作平面口罩的**工序，采用超声波将多层PP纺粘无纺布、活性炭以及过滤材料在不改变材质的标准下进行自动作业，被广泛应用于PP、无纺布、熔喷布、滤纸、活性炭布等材料，职业防护、普通防护、劳保用品、医院、研究院及无尘工业等场合。
It adopts ultrasonic technique and full automation, it is for first process of mask making, it adopt ultrasonic to make PP, non-woven, activated carbon or other filter materials to work automatically without changing their actual materials, Widely used in materials like PP, non-woven, melt-blown, filter paper, activated carbon etc. And occasions like work protection, normal protection, labor protection, hospital, research center and clean industry.
机台特性：
● 采用超音波熔合技术，只需一人操作。
● 整机从入料、鼻线插入、封边、裁切成品均为自动化作业，
● 机架结构采用铝合金制作不生锈、耐用、易清洁、美观等特点。
● Ultrasonic melting technique, single man operation
● Automatic working from feeding to nose-wire insert, lace sealing, cutting finished products.
● Machine frame adopts aluminum. Anti-rust, durable, easy cleaning and neat.

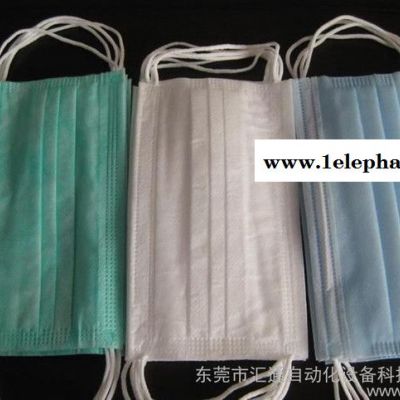

应用示例：
规格参数 Specifications：
| 机器型号 Model NO. | 功率 Output Power | 超音波频率 Ultrasonic Frequency | 效率 Capacity | 产品规格 Specification | 电源 Power Supply | 重量 Weight | 机器尺寸 Machine is Size |
| HT-PBT11B | 4000W | 20KHz | 130-180pcs/min | 175*96mm （可定制） | 50/60Hz AC220V | 420KG | 3900(L)*700(W) *1800(H)mm |
※产品改良之需如有设计变更恕不另行通知
※Specifications are subject to change for product improvement.
