| 是否有现货： | 是 | 认证： | ISO9001 |
| 可视角度： | IPS | 显示技术： | TAB |
| 用途： | 显示器 | 类型： | 彩色 |
| 型号： | HGF07033 | 规格： | 800*480 |
| 商标： | 清达光电 | 包装： | 纸箱 |
| 产量： | 11111 |

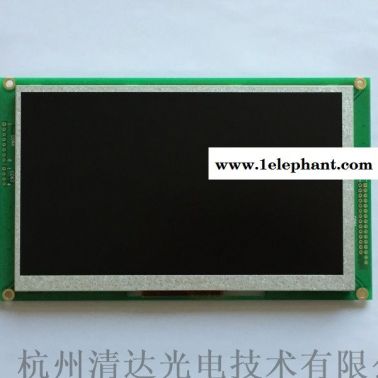

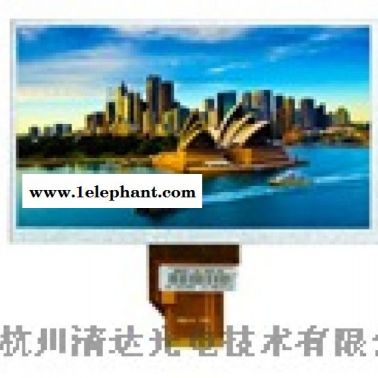

基本介绍
| Item | Specifications |
| Size | 7 inch |
| Resolution | 800×3(RGB)×480 |
| Color depth | 65K |
| Viewing direction | 12 o'clock |
| Operation temperature | -20 ℃ ~70 ℃ |
| Storage temperature | -30 ℃ ~ 80 ℃ |
| Driver IC | RA8875 |
| Interface type | 8 -/16-bits 80-serials parallel MPU interface |
| Touch panel | With RTP |
| Item | Symbol | Min. | Typ. | Max. | Unit |
| Power supply | VDD | 4.5 | 5.0 | 5.5 | V |
| Supply current | IDD | - | - | - | mA |
| Input signal voltage | VIH | 0.7 VDD | - | VDD | V |
| VIL | 0 | - | 0.3 VDD | V | |
| Output signal voltage | VOH | 0.8 VDD | - | VDD | V |
| VOL | 0 | - | 0.2 VDD | V | |
| Power supply for LED backlight | VF | - | 9.6 | - | V |
| Current for LED backlight | IF | - | 160 | - | mA |
| Operating life time for LED backlight | Ta=25℃and IF =160mA | - | 20000 | - | Hrs |
使用说明 | Item | Symbol | Condition | Min. | Typ. | Max. | Unit | |
| View angles | VERT | θT | CR≧10 (Note5) | 60 | 70 | - | Degree |
| θB | 50 | 60 | - | ||||
| HOR | θL | 60 | 70 | - | |||
| θR | 60 | 70 | - | ||||
| Contrast ratio | CR | θ=0° | 400 | 500 | - | - | |
| Chromaticity | White | X | Backlight is on | 0.25 | 0.30 | 0.35 | |
| Y | 0.25 | 0.30 | 0.35 | ||||
| Luminance | L | Ta=25℃and IF =160mA | - | 250 | cd/m2 | ||
